Fibre Facade Enclosure
Fibre Facade Enclosure Fibre Facade Enclosure Fibre Facade Enclosure Fibre Facade Enclosure Fibre Facade Enclosure

Fibre Facade Enclosure

DS-BBE-FFE

Non Stock Item- Check Lead time

Save up to 2% online

Looking to Buy?

For more information or to order, click here to contact us.

Require Project Pricing?

Click here to email your parts list and we will send you a quote

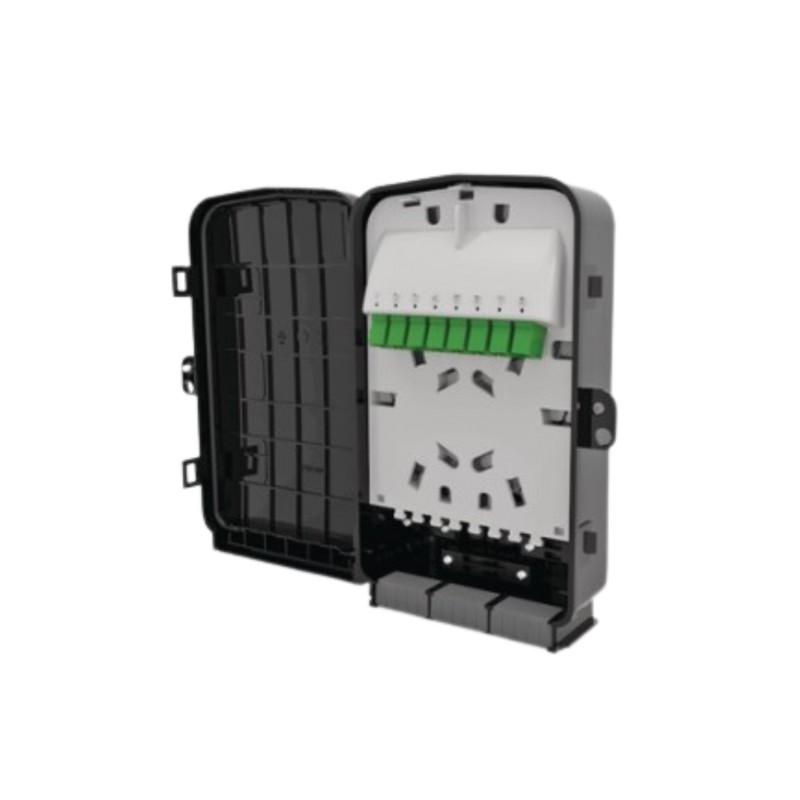

The Fibre Facade Enclosure is an IP55/IK09 rated enclosure manufactured from UV stabilised polymer. Features are included to provide for mounting on a pole or building facade. The enclosure is supplied in black or grey as standard (other colours are available MOQ dependent) and has provision for a moulded customer logo if required.

The enclosure consists of 3 separate fibre management areas:

- Inbound Cable Management
The lower section of the enclosure has 4 dedicated entry ports with strain relief for incoming feeder cables which can accommodate a mid­span and 2 spur cables. This area provides positive fibre management and loop storage for a maximum of 144 fibres.

- Fibre Splice Management Area
A dedicated splice management tray sits above the fibre storage area and has capacity for up to 12 x 3A heatshrink splices (24 if double stacked), with a maximum splice protector length of 60mm. The tray provides separate fibre management areas for 250µm fibres and 900µm pigtails whilst maintaining 30mm minimum bend radius throughout.

- Drop Cable Management
The drop cable management area consists of a removable upper
fibre management tray which presents 12 LC or SC simplex adapters for connection to industry standard pre-terminated drop cables
and prevents access to the lower splicing area when in place. Fibre management is provided on the underside of the tray for 900µm pigtails allowing the spare cable to be maintained separately from the 250µm feeder cable fibres. Retaining features allow for a maximum of 3 x 1 :4 PLC splitters to be mounted if required. The fibre management maintains a 30mm minimum bend radius throughout with a cross over facility to allow for alternative routing requirements.

The LC/SC simplex adapters on the customer facing side of the tray are angled and spaced to allow for inspection prior to connection. 12 anchor guides are provided for securing the drop cables. Drop cable exit ports use a simple push fit seal to ensure performance in excess of IP55.
