Aerial Subscriber Node (ASN)
Aerial Subscriber Node (ASN) Aerial Subscriber Node (ASN) Aerial Subscriber Node (ASN)

Aerial Subscriber Node (ASN) - 24 Port

ASN

Non Stock Item- Check Lead time

Save up to 2% online

Looking to Buy?

For more information or to order, click here to contact us.

Require Project Pricing?

Click here to email your parts list and we will send you a quote

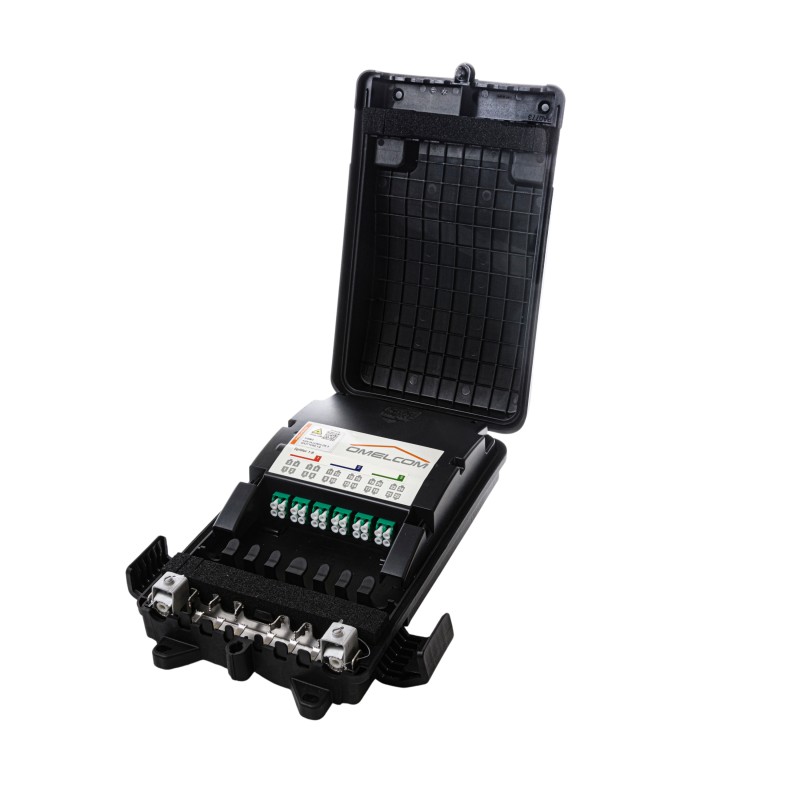

The Omelcom Aerial Subscriber Node (ASN) is suitable for external use within Fibre-to-the-Home (FTTH) and Fibre-to-the-Business (FTTB) deployments.

The ASN provides connections between backbone and horizontal optical fibre cables with midspan capability, PLC splitter holders, splicing and preconnectorised
formats.

The ASN features an EasySecure anchoring system, designed to hold cables in place securely and easily as specified in EN 61300-2-4. Splice tray cassettes and splitters can be added to create different configurations depending on the application, such as GPON or P2P. Conforming to IP55 rating the ASN is a small, slimline multifunction fibre distribution box.

Pole mount installation is easily achieved on a Connectix single or dual bracket, securing loop storage for a neat finish.



Features & Benefits
  • IP55 rating
  • Physical separation between backbone and drop lead elements
  • Loading options for 1x4, 1x8, 1X16 steel tube/module splitter either bare end or pre-connectorised
  • SC/APC simplex or LC/APC duplex adaptors
  • Fibre management for splitters and incoming cables; storage cassettes and splice management trays
  • 2 x feeder cable in/out ports, entry for 6mm- 15mm cables
  • 1 x common feed gland entry point
  • 2 x splitter holders, max capacity 1 x 1:8 + 1 x 1:16 (LC or SC)
  • Pole or wall mounting
