UFO Midspan 4
UFO Midspan 4 UFO Midspan 4 UFO Midspan 4 UFO Midspan 4 UFO Midspan 4

UFO Midspan 4

UFO-001-002-0

In Stock

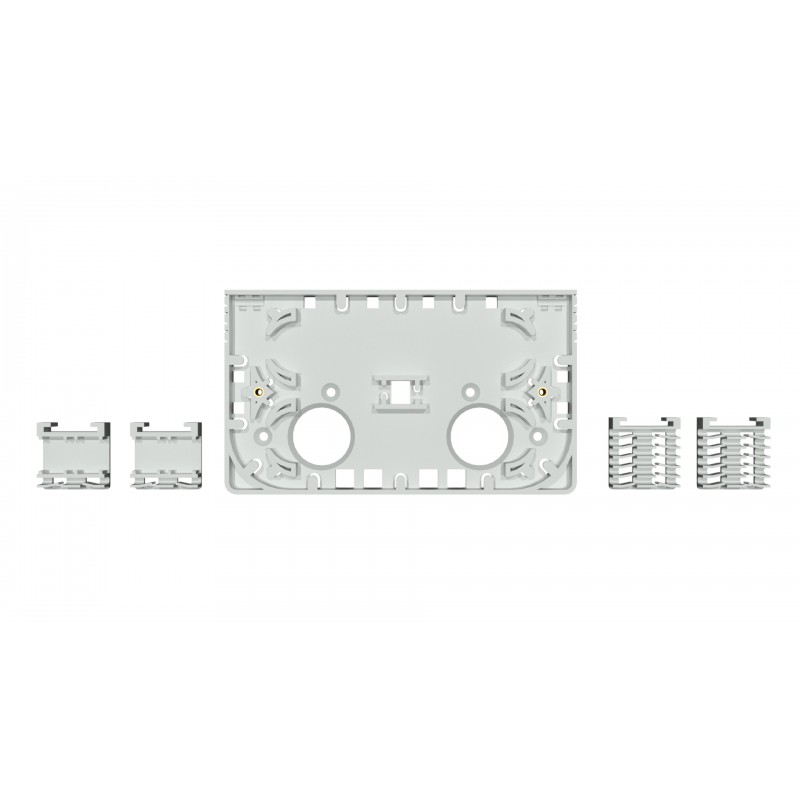

The Unseen Fibre Optic (UFO) Midspan 4 is a fully adaptable point of entry box. This component of the UFO System at just 16.5mm deep, is a highly versatile, compact design with six different cable entry points (5mm max cable diameter). This offers installers seamless integration into any indoor environment. Installation is quick and easy for engineers with cable, fibre pathways and management.

The UFO Midspan 4 features interchangeable adaptor inserts of either an adaptor holder inc up to 2 x splices, or a splice holder for up to 24 splices. This unique feature gives Installers an option to use the UFO Midspan 4 as a splice repair box or deploy as a FTTH point of entry box. Splice repairs can be performed without delaying the install. The UFO Midspan 4 can also be positioned appropriately in ceiling spaces, offering installers the ultimate flexibility for their FTTX installation.



Features & Benefits

  • SC/APC SX or LC/APC DX connectivity
  • 2 x max adaptor capacity
  • 12 x splice holders, max capacity 24 splices (for use with both 60mm & 45mm splice sleeves)
  • Interchangeable adaptor and splice holder inserts
  • Fibre warning sign on lid
  • 2 x self retaining M3 securing screws in lid
  • Easy fibre management and pathways
  • Left and right cable access for up to 3x cables (max 5mm dia)
  • Singlemode (OS2) fibre
  • Supplied with a fire retaining clip that meets BS6701:A1
  • 2x entry points for access through substrate into apartment/building for customer connection
  • Compatible with ITU-T.G.657.B3 singlemode fibre
