MDx48i Fibre Distribution Box

009-200-014-12

In Stock

Save up to 2% online

Looking to Buy?

For more information or to order, click here to contact us.

Require Project Pricing?

Click here to email your parts list and we will send you a quote

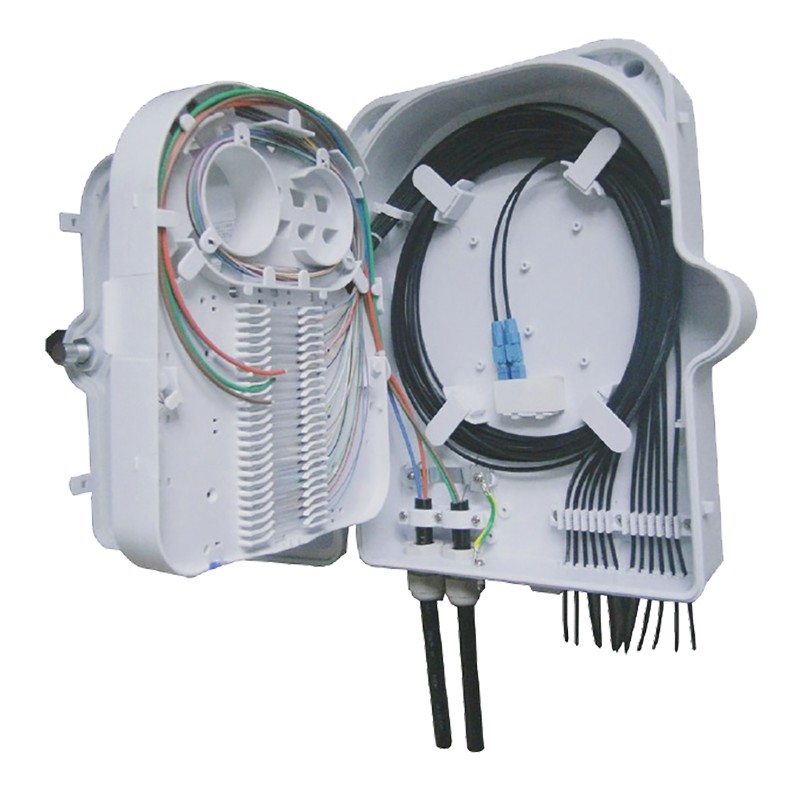

Connectix internal MDx48i Fibre Distribution Boxes are suitable for use within FTTx deployments.

The Connectix MDx48i provides fibre connectivity options inside building risers, entrance facilities and within business enterprises as a fibre distribution point. The MDx48i interconnects distribution points between primary and secondary locations through to ONTs at the consumer end. MDx48i fibre boxes can also be used as splice points within multi-level/tenant business premises, linking backbone cables to and from on or off site points of presence. When installed as part of Connectix FTTx solution the MDx48i will deliver excellent performance with minimal loss and ease of installation.

Available in unloaded or pre-loaded versions, the MDx48i offers variations for up 24-way SC/APC or SC simplex and 48-way LC (24 LC duplex) adapters, spliced, pre-connectorised with or without splitters.

Within the MDx48i the splice tail slack management tray is suitable for most common fibre drop cable feeds.

Features & Benefits
  • Small, compact fibre distribution box, internal application
  • IP54 rating
  • Multiple loading options for 1:2 to 1:32 PLC steel tube splitter
  • Can load up to 24-way SC/APC, SC/UPC, 24 LC/APC Duplex and LC/ UPC Duplex adaptors (LC - 48 fibre)
  • Wall inbuilding mounting application
  • 2 cable entry port; 16 drop cable ports
  • FTTH, FTTP, MDU, SDU, SMDU suitable
  • Manufactured of ABS plastic
Cable Entry2 in / 16 out
MaterialABS Plastic
Weight
Dimensions335mm x 296mm x 117mm
IP ratingIP54
ApplicationFTTx
Max. No of fibre per splice tray24
Sealing methodMechanical Click and lock with turn key.
Stored coiling fibre length≥1.6m
Lateral compression resistance≥2000N / 10 cm
Impact resistance≥20N.m
