HomeSDU SystemsExternal CSPCustomer Splice Point (CSP) x4e
Customer Splice Point (CSP) x4e
Customer Splice Point (CSP) x4e Customer Splice Point (CSP) x4e

Customer Splice Point (CSP) x4e

009-007-006-00

In Stock

Save up to 2% online

Looking to Buy?

For more information or to order, click here to contact us.

Require Project Pricing?

Click here to email your parts list and we will send you a quote

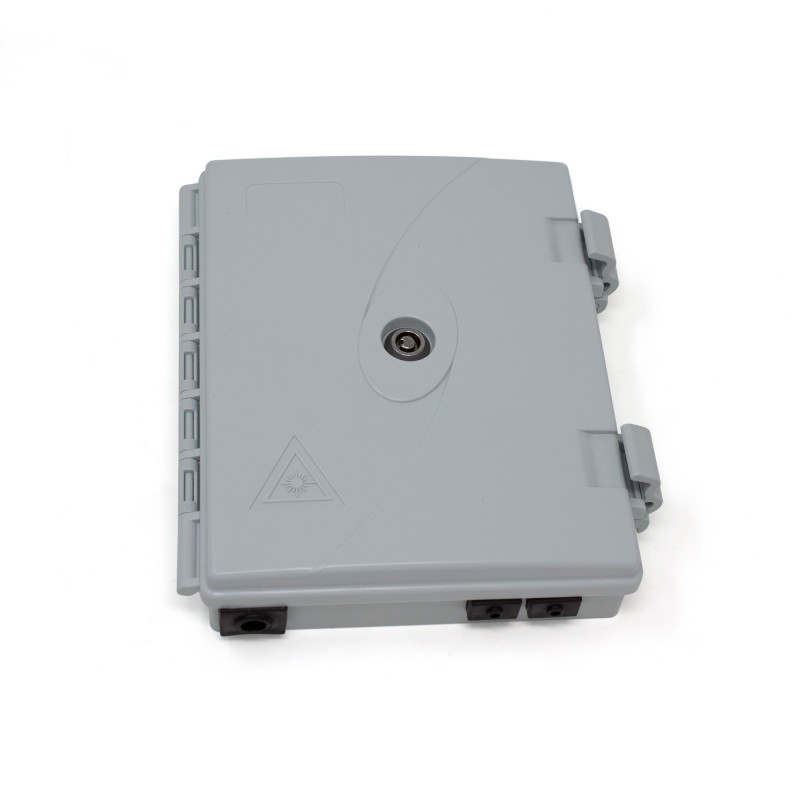

Connectix slimline external Customer Splice Points (CSP) are suitable for use within Fibre-to-the-Home (FTTH) and Fibre-to-the-Business (FTTB) deployments.

The external Connectix CSP provides connectivity options inside and outside homes as a fibre distribution point within a multiple dwelling unit (MDU), small MDUs (SMDU) and within single dwelling units. The CSP interconnects ONTs at the consumer end and when installed as part of Connectix FTTx solution the system will deliver excellent performance with minimal loss.

Available unloaded or pre-loaded versions, external Connectix CSPs offer variations for 4-fibre LC/APC, LC/PC duplex or 2-fibre SC/APC, SC/PC simplex adapters, loaded with pigtails or 1:2 and 1:4 splitters. Within the external Connectix CSP is splice tail slack management suitable for most common fibre drop feeds including 900um and 1.8mm cables.


Features & Benefits

• Slimline Customer Splice Point, Internal / External options
• Locate in apartments, equipment apartment cabinets, outside properties
• GPON / POL Solution
• FTTH, FTTP, MDU, SDU, SMDU suitable
• Rainfall resistant, outdoor use, IP55
• Accommodates 1:2, 1:4 steel tube splitter
• Can load up to 2 x duplex LC/APC, /LC/PC, or 1 x SC/APC, SC/PC adapters
• Wall mounting and inbuilding mounting application
• 1 cable entry port; 2 exit cable ports
• Manufactured of ABS plastic
• Includes raw plugs, splice tube holder, lockable key
