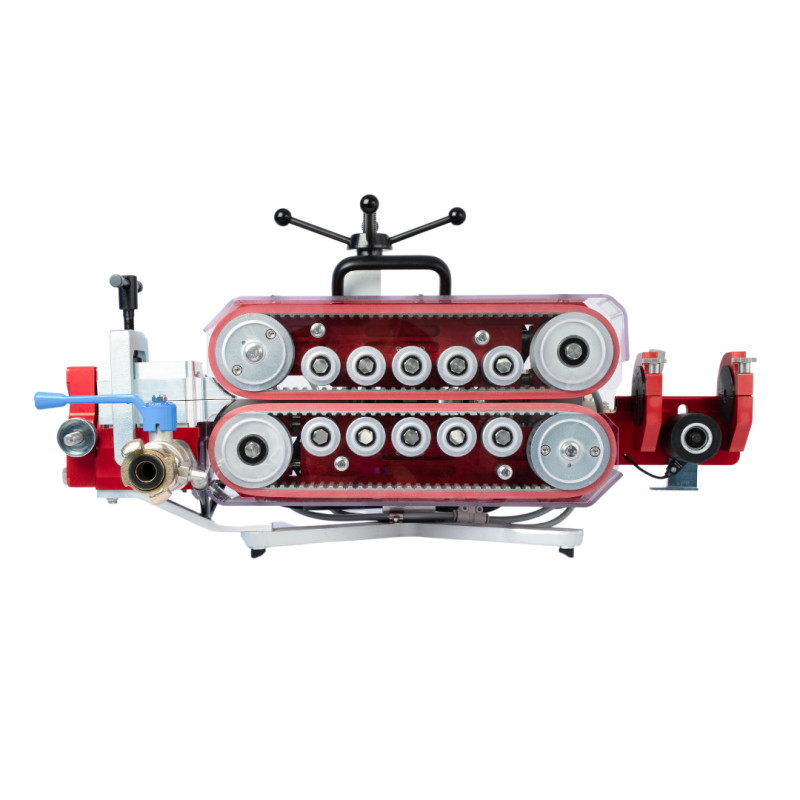

V3 Fiber Blowing Machine 1800N

Reference: V3-1800N-CAN

The V3 Fiber Blowing Machine is a robust and powerful, pneumatic operated fiber blowing machine designed for single cables and for relining of multiple microducts.

Able to be configured for cables ranging from 4 to 40mm, microduct dimensions between 10-22mm, and smooth wall conduit dimensions between 0.75” to 2.00”. The unique joystick controller and the agile motors securing optimal control of the installation. With an anodized aluminium construction, the machine is lightweight but still very strong.

The V3 can also be used for subducting and floating with the relevant kit.

Features & Benefits

Pneumatic operation with double motors
Electronic counter for speed and distance
Gentle operation with long contact surface on the cable
Display for speed, distance and pressure in duct
Max. speed 50m/min (165 ft./min), max pushing force on cable 1800N
Adjustable clamping force
Option of sub-ducting kit for installing several microducts. Example: 7×7/3.5mm or 4×14/10 mm in a 50mm tube simultaneously.
Works with JetLogger
Joystick Controller with forward and reverse function
Duct air quick release valve
