Home8 Fibre Internal / External Break Out Box
8 Fibre Internal / External Break Out Box
8 Fibre Internal / External Break Out Box 8 Fibre Internal / External Break Out Box

8 Fibre Internal / External Break Out Box

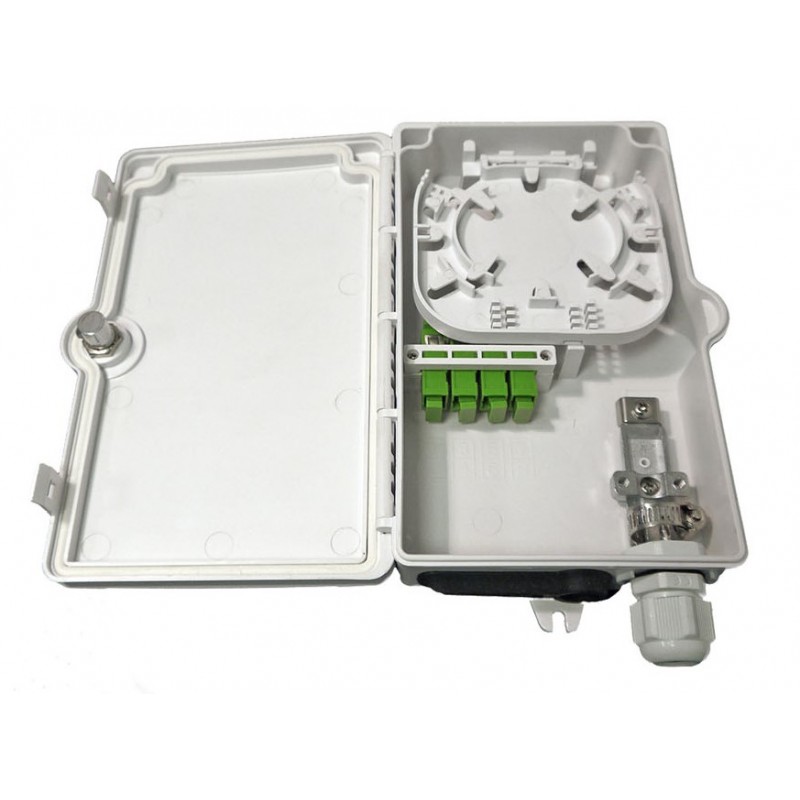

This IP65 distribution box offers the ability to terminate up to 8 fibres, housed in a robust ABS enclosure for indoor and outdoor applications.
Please note: the box is not supplied with any adapters, or leads. The Box is Empty except for what is listed .

009-008-000-14

In Stock

£65.21 £54.34 Ex VAT.

Save up to 2% online

Looking to Buy?

For more information or to order, click here to contact us.

Require Project Pricing?

Click here to email your parts list and we will send you a quote

With the ability to use a full array of adaptor types offering a flexible solution to the end user, enabling them to incorporate a multi-functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibres.

In addition to the array of adaptors the enclosure also offers up to 8 exit points for patching cables and 1 standard cable entry points for loose tube, tight buffer, pre-terminated and steel tape armoured cable. Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door allowing for quick and easy installation.

Features & Benefits
• Up to 8 fibres
• Removable splice tray for easy installation
• Multiple adaptor options available
• 8 adapter positions
• Accepts loose tube, distribution and pre-terminated cables
• Integrated bend radius protection
• Sealing glands for up to 8 cables
• Removable door for ease of installation
• Supplied with 12 heat shrink splice protectors
• Supplied with transit tubing
• Supplied with wall fixings and tie wraps
• Adapters are not supplied
Cable Entry20 mm x1
CertificationRoHS, Reach/SVHC
Depth44 mm
Height191 mm
MaterialWhite ABS
Width120 mm
Number of Ports8 Ports
Operating Temperature-40°C to +50°C
IP ratingIP65S
Compatible adaptorSC Simplex, LC Duplex
Number of fibres8 Fibres
Cable exit20 mm x2
