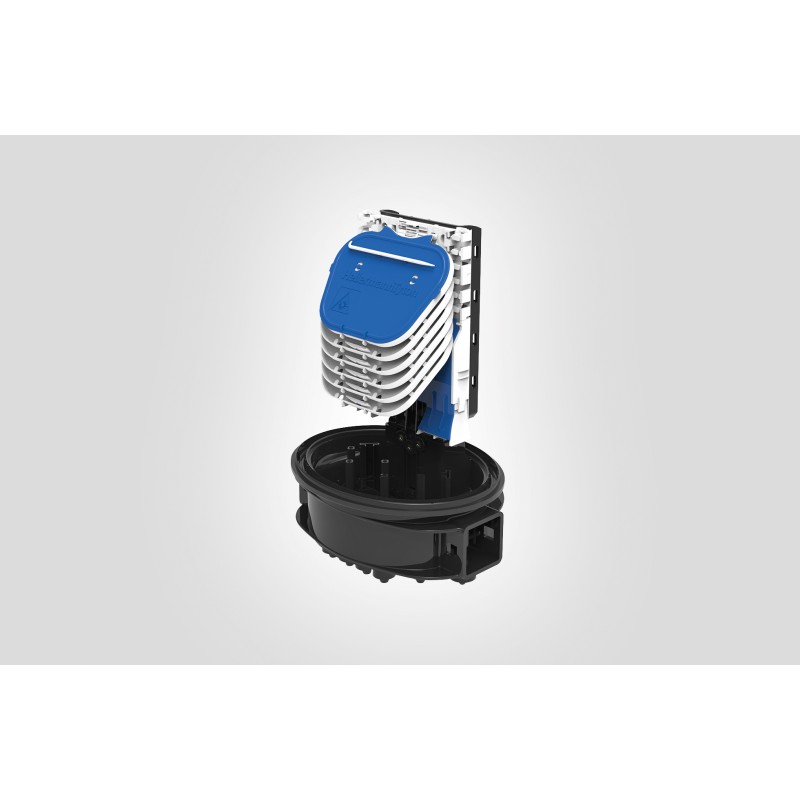

Hellerman Tyton Compact Fibre Node (CFN) 6 TRAYS
Hellerman Tyton Compact Fibre Node (CFN) 19 PORTS Hellerman Tyton Compact Fibre Node (CFN) 6 TRAYS

Compact Fibre Node (CFN)

CFNIRC-SXBDWX

Non Stock Item- Check Lead time

Save up to 2% online

Looking to Buy?

For more information or to order, click here to contact us.

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The CFN fibre splice closure range offers a closure for a wide range of FTTx applications for both P2P and P2MP topologies.

The CFN 19 and 27 Port Integrated Routing (IR) closures are supplied with a UV stable Polypropylene base. With base configurations of either 26 round ports and 1 oval port or 18 round ports and 1 oval port, the CFN accommodates a cable diameter range of 1.7 - 20.0mm when using mechanical cablelok seals.

The IR Fibre Management System (FMS) accommodates a maximum of 12 compact SE single element (SE) or 24 single circuit (SC-B) splice trays in the M length closure and 6 SE or 12 SC-B in the S length closure. The SE trays can be fitted with a range of fibre splice bridges including 3A and ANT.

The position of the FMS allows unrestricted access to the cable entry ports, each of which has the option of integrated cable anchoring.

The loop storage basket is situated directly above the oval cable port enabling efficient routing to it and the fibre splice trays via the modular IR FMS. The splice trays and the fibre optic routing modules are white in colour making it easy to clearly identify the individual fibre colours as they are routed through the positive fibre management system.

The fibre entry block has dedicated PLC splitter accommodation for a maximum of 2 x 250μm bare end PLC splitters and fibre management for fibre direction changes and storage of excess fibre. Fibre retention guides manage the fibre elements into the IR system.

All IR system cover parts are coloured blue identifying them as removable parts allowing access to the fibre.
