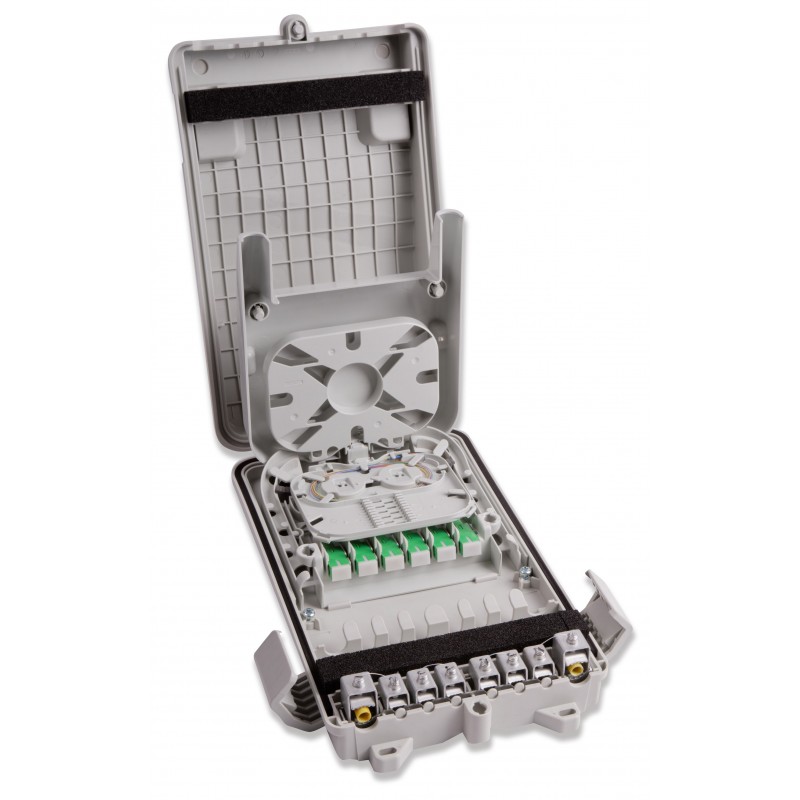

UFO Fibre Distribution Box

The Connectix UFO Fibre Distribution Box (FDB) is suitable for internal or external use within Fibre-to-the-Home (FTTH) and Fibre-to-the-Business (FTTB) deployments.

The UFO FDB provides connections between backbone and horizontal optical fibre cables with midspan capability, PLC splitter holders, splicing and pre-connectorised formats.

The UFO FDB features EasySecure anchoring system, designed to hold cables in place securely and easily as specified in EN 61300-2-4. Splice tray cassettes and splitters can be added to create different configurations depending on the application, such as GPON or P2P. Confirming to IP55 rating the UFO FDB is a small, slimline multifunction fibre distribution box.

Features & Benefits

• IP55 rating
• Physical separation between backbone and drop lead elements
• Loading options for 1x4, 1x8, 1X16 steel tube/module splitter either bare end or pre-connectorised
• SC/APC simplex or LC/APC duplex adaptors
• Fibre management for splitters and incoming cables; storage cassettes and splice management trays
• 2 x feeder cable in/out ports, entry for 6mm- 15mm cables
• 1 x common feed gland entry point
• 6 smaller feeds out, max OD 9mm, or can double stack 12 x max 6.2mm OD
• 2 x splitter holders, max capacity 1 x 1:8 + 1 x 1:16 (LC or SC)
• Wall mounting internal or external use
• FTTH, FTTP, MDU, SDU, SMDU suitable
