Enquire for Price & Lead time

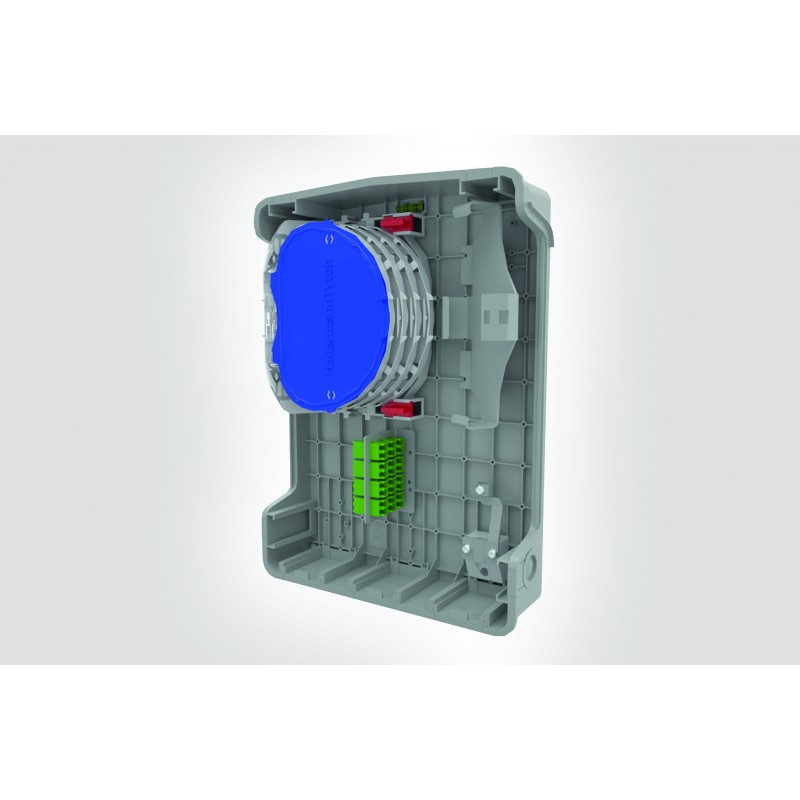

The HellermannTyton S3 Series of wall mountable enclosures are suitable for both internal and external applications and have been developed for use within the last mile of the mx network.

The enclosure has been designed to accommodate the HellermannTyton IR Fibre Management System and offers the adaptability of point to Multi Point (P2MP) or Point to Point (P2P) configuration.

The enclosure can be supplied in a splice only configuration or as a connectorised version with 24 LC duplex or 12 SC simplex connections.


Features & Benefits
  • Maximum 96 fibre splices
  • IR angled fibre management system with provision for 3 PLC splitters
  • 4 SE or 8 SC-B IR trays with 3A splice bridges
  • 7 Input/Output positions
  • In-built spirit level
  • IP54/IK08
  • UV Stable
  • V0 Rating
