1u Pivoting ODF Panel
1u Pivoting ODF Panel 1u Pivoting ODF Panel

1u Pivoting ODF Panel

009-200-064-12

In Stock

Save up to 2% online

Looking to Buy?

For more information or to order, click here to contact us.

Require Project Pricing?

Click here to email your parts list and we will send you a quote

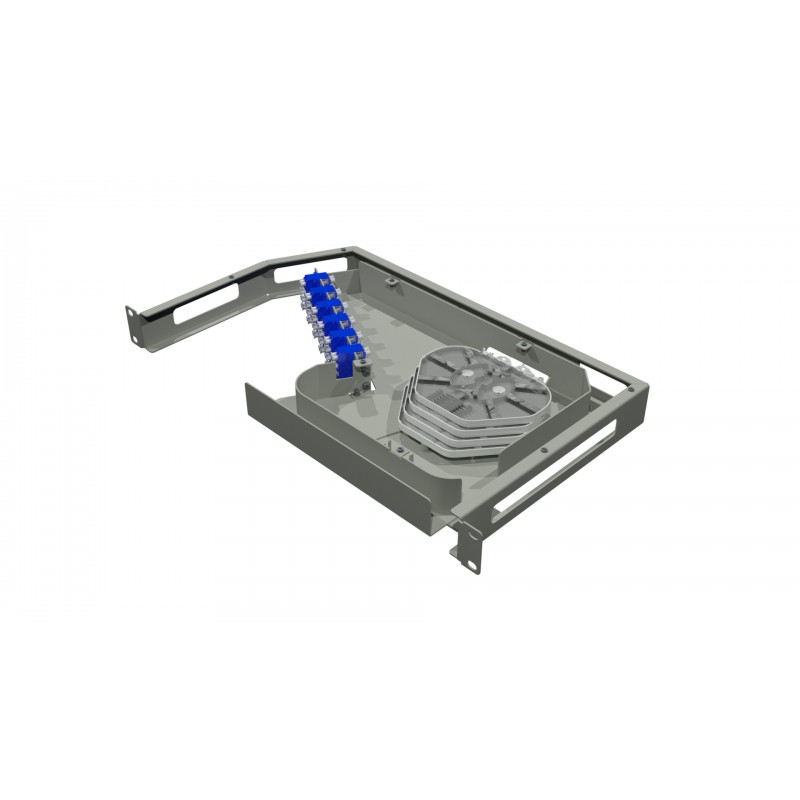

The Connectix Splice and Patch Shelf is a modular unit available in a variety of configurations for integration in to 19” and ETSI racks, street side or wall mounted cabinets. The product consists of a metal chassis, a plastic light weight splice and patch module and a cable anchoring system.
The product has a capacity of up to 48 fibres in a 1U unit for LC type connectors, and up to 24 fibres for SC type connectors. The panel has in built fibre management to ensure the product is installed correctly and the same every time by installers.
The shelf is fully compatible with all optical cable types, with blown fibre tube cables and can be configured to hold optical devices (i.e. splitters & WDM’s) on request.


Features & Benefits
  • Modular design allows easy upgrades for increased density
  • Very high splice and patch density of 48 fibres for LC connector type in 1U
  • High splice and patch density of 24 fibres for SC connector type in 1U
  • Suitable for installation into 19”/ ETSI / ANSI racks, wall mounted cabinets and street-side cabinets
  • Splice and patch module pivots outwards for easy fibre access and maintenance
  • The front panel prevents accidental disconnection of patch-cords and provides additional space for patchcord routing during installations
  • All fibres are positively bend managed to a 30mm radius
  • Splice and patch bay is covered with a detachable lid (secured with four screws) to protect the splices and pigtails once installed
  • The panel can be used for optical splitters and other passive devices in alternative configurations
  • Can accommodate most cable types including blown fibre tube cables
