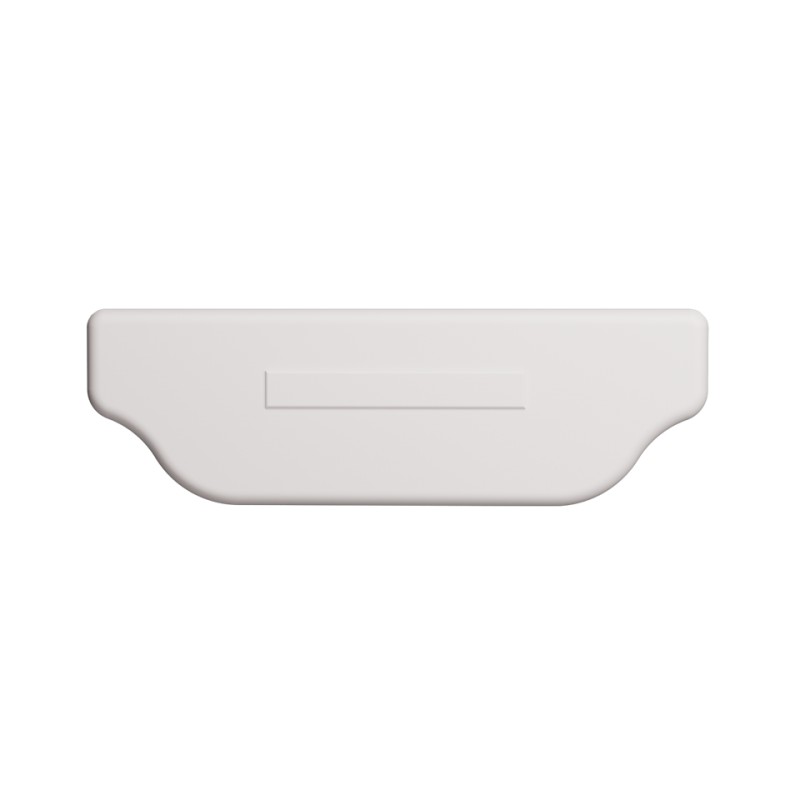

UFO Midspan Box

UFO-001-002-01

In Stock

£11.04 £9.20 Ex VAT.

Save up to 2% online

Looking to Buy?

For more information or to order, click here to contact us.

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Connectix Unseen Fibre Optics (UFO) Midspan range of indoor enclosures provides a connection between the UFO vertical (riser) distribution point (DP) enabling Point to Point (P2P) or Gigabit capable Passive Optical Networking (GPON) connectivity into customer properties.


Available in three sizes (Midpsan 1, Midspan 2 or Midspan 3) depending upon the size constraints some installation locations may present, it enables a discreet solution utilising the Connectix UFO Ultra Slim Midspan Cable, supporting a 1-12 fibre cable within a corridor or ceiling area and midspan for apartment access.

The enclosure base design manages the UFO Midspan Cable and accommodates a storage loop of up to 2 metres. Configurations available for splicing only or pre-connectorised with SC/APC or LC/APC connectivity including fire clip options.

The UFO Midspan Box is discreet, engineer friendly and available to be customer branded with your service provider logo.

Features & Benefits
  • SC/APC Simplex or LC/APC Duplex (Simplex SC Footprint) connectivity (Midspan 1)
  • LC/APC Simplex connectivity (Midspan 2 & 3)
  • 1 x Max. bulkhead adaptor capacity
  • 1 x Splice holder, max. capacity 2 splices (45mm or 60mm splice protectors)
  • 2 x Lid fixing screws (non-retained)
  • Two through the wall exits included in base
  • Custom Branding available
  • Controlled internal fibre management maintains fibre bend radii
  • Injection Moulded in flame retardant, UV stable ABS (Acrylonitrile
  • Butadiene Styrene)
  • Compatible with ITU-T.G.657.B3 single mode fibre
